TD-YXH0104
Junction box for cameras, available for wall or ceiling mounting.
Introduction
Specification
Downloads
Features
Aluminum alloy material with surface spray treatment
Camera cables can be perfectly collected to the junction box so that the installation looks more elegant
Bottom inlet and side inlet
Available for wall or ceiling mounting
Dust-proof design

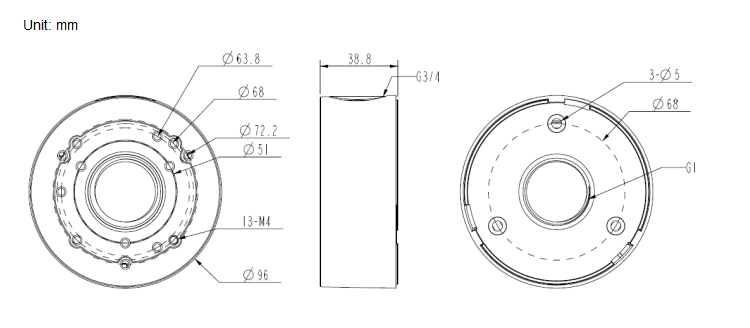

Dimension
Model | TD-YXH0104 |
Material | Aluminum alloy |
Color | White |
Min. Packaging Quantity | 20 |
Packing Size | 253x249x262mm |
Dimension | ?96x38.8mm |
Load Bearing | The wall must be strong enough to withstand at least 3 times the weight of the camera and the junction box |
Net Weight | 135g |
Working Temperature | -40°C~+60°C(-40°F~+140°F) |
Working Humidity | 10%~90% |
