TD-E2223-EM/IC/PE/WF
Video Intercom Door Station
TD-E2223-EM/IC/PE /WF
Introduction
Specification
Downloads
Features
3.5 inch IPS screen
2MP (1920×1080) real-time H.265 coding
Face recognition distance: 0.3m-2m
Support face detection technology distinguishing real faces from non-real face spoof attacks
Support 3D DNR, HWDR, BLC, HLC, Defog, etc.
Support multiple door opening modes (by swiping card, by password, by face recognition, etc.)
Support door opening by indoor station or by mobile APP
Support copy-prevention for IC card; support IC card encryption
Support anti-tampering alarm; support triggering alarms when the door is not secured or the door is broken by others
One-button calling indoor station
Support card reader access access via RS485 interface
Support 2.4G Wi-Fi; Support P2P function
Support remote surveillance via mobile APP, web browser or tablet PC
Intelligent analytics: video exception detection, face detection, face capture, face comparison
IP67

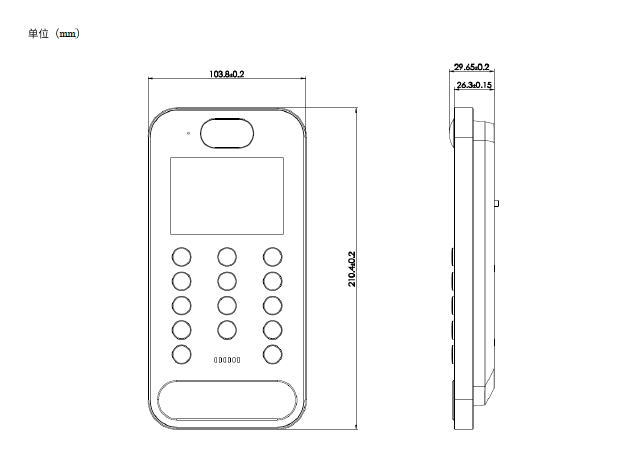

Dimension
| Model | TD-E2223-EM/IC/PE /WF |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | Auto/Manual; Manual:1/2s ~ 1/100000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | Color：0.0085lux@F1.2，AGC ON； B&W：0 lux with IR |
| Lens | M8 HD dual lens: 2.3mm@F2.2 |
| Vertical FOV: approx. 74°，Horizontal FOV: approx. 139°, Diagonal FOV: approx. 170° | |
| WDR | 120dB |
| S/N Ratio | ≧50dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| DNR | 2D/3D NR |
| Image | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Bit rate Type | VBR/CBR |
| Bit Rate | 64Kbps ~ 6Mbps |
| Resolution | 1080P(1920×1080), 720P(1280×720), D1, CIF, 480×240 |
| Main Stream | 1920×1080/1280×720(60Hz: 1~30fps; 50Hz: 1~25fps ) |
| Sub Stream | 720P/D1/CIF(60Hz: 1~30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480×240(60Hz: 1~30fps; 50Hz: 1~25fps ) |
| Image Setting | Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, etc., adjustable through client or web browser |
| Audio Compression | G711A/U |
| Screen | |
| 3.5 Inch ISP Screen | Resolution: 320 (RGB) ×480 |
| Brightness | 250cd/m2 |
| Auto sleeping | Support auto wakeup when detecting a person or wakeup by pressing a button |
| Card | |
| Card Type | Mifare card /Desfire card/FM1208 Card/Gicard |
| Card Reading Protocol | ISO14443A/B protocol,EM41XX |
| Card Reading Frequency | 13.56MHz & 125KHz |
| Card Reading Duration | <1s |
| Card Reading Distance | 0~2cm |
| Card Capacity | 10000 |
| Interfaces | |
| Network | RJ45(10/100 Base-T) |
| Video Output | No |
| Audio | Built-in MIC×1, built-in speaker×1; support noise suppression and echo cancellation |
| Storage | 1CH built-in micro SD card, up to 256GB |
| Reset | Yes |
| RS485 | Yes (for card reader or access control system access) |
| Wiegand Interface | Yes (Wiegand input or output configurable) |
| Alarm | 2CH alarm input; 1CH alarm output |
| Door Lock Output | 2CH |
| Door Contact Input | 2CH |
| Exit Button | 2CH |
| Anti-Tamper Interface | 1CH |
| Swiping Card Area | Support IC card/EM card |
| Digital Buttons | Yes |
| Wi-Fi | Support 2.4G Wi-Fi function |
| Access Control | |
| Personal Properties | Face picture, ID number, list type(group), name, gender, age, phone number, card ID, password, door opening mode, note |
| Door Opening Modes | By face recognition/swiping card/password/indoor station/APP |
| Schedule | Yes |
| Mask Detection | Yes |
| Secondary Door Station | Yes |
| Capacity | 50000 event items can be recorded |
| Function | |
| Remote Monitoring | Web client/indoor station/CMS remote control |
| Online Connection | Supports simultaneous monitoring for up to 10 users |
| Supports multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTPS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage，SD card storage，cloud storage |
| Intelligent Analytics | SD card error, SD card full, IP address conflict, network disconnection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login |
| PoE | Yes (802.3af) |
| P2P | Yes, turn on by default |
| IR Distance | 0.3-2m |
| Protection Grade | IP67， IK04 |
| Network Security | Video encryption, firmware encryption, configuration encryption, Digest, illegal login lock, IP address filtering, HTTPS, 802.1x |
| Intelligent Analytics | |
| Intelligent Analytics | Face detection, face capture, face comparison |
| Face Detection | Pupil distance of a facial image over 20 pixel can be detected |
| Face Capture | Outputting the optimal face image by precise detecting, tracing, capturing, scoring and screening the moving faces |
| Original Image Capturing | Supports original image capturing and self-defined overlaid information (like device ID, time, etc.) |
| Face Picture Database | 10000 |
| Face Comparison Storage | Face pictures can be added, modified or deleted in the face database. |
| Face Picture Adding | Adding face pictures through WEB, face album manager tool |
| External Face Picture Enrollment | Size: less than 70KB，JPG/JPEG format |
| Face Comparison Alarm | Face detection alarm, allow list, block list and stranger alarm |
| Others | |
| Power | DC12V/PoE |
| Power Consumption | < 12W |
| Environmental Protection | RoHS 2.0，REACH，WEEE， directive94/62/EC |
| Working Environment | -20℃~60℃, Humidity: less than 95% (non-condensing) |
| Dimensions(mm) | Approx. 210mm × 104mm ×30mm |
| Weight (net) | Approx. 0.6 kg |
| Installation | Wall Mounting |
