TD-YZJ0312
Pole Mounting Bracket
Introduction
Specification
Downloads
Features
Vertical pole mounting bracket with the junction box
Aluminum alloy and steel with surface spray treatment
Bottom outlet, and back outlet
The hook for safety rope facilitates speed dome’s installation

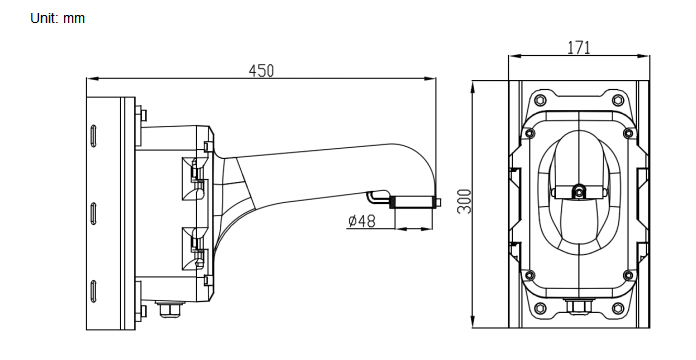

Dimension
Model | TD-YZJ0312 |
Material | Aluminum alloy and steel |
Color | White |
Min. Packaging Quantity | 1 |
Packing Size | 450x300x478mm |
Dimension | 256x300x171mm |
Net Weight | 5.1kg |
Load Bearing | The wall must be strong enough to withstand at least 3 times the weight of the speed dome and the bracket. |
Working Temperature | -40°C~+60°C(-40°F~+140°F) |
Working Humidity | 10% ~ 90% |
