TD-9585E3B-DP
8MP Dual-lens Splicing Turret Network Camera
TD-9585E3B-DP ( D / PE / AW3) Fixed Lens ：2.8mm
Introduction
Specification

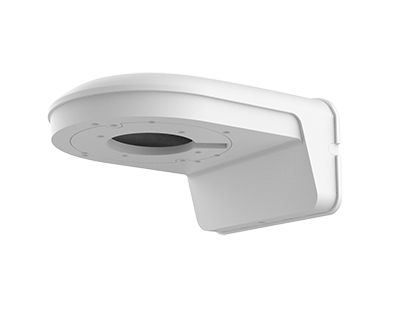

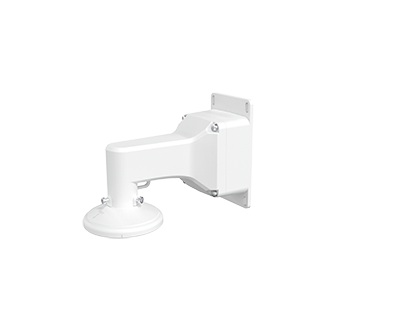

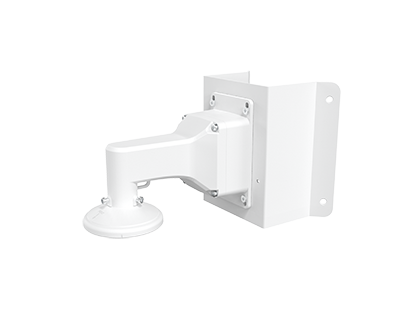

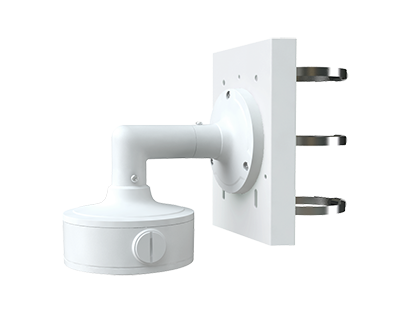

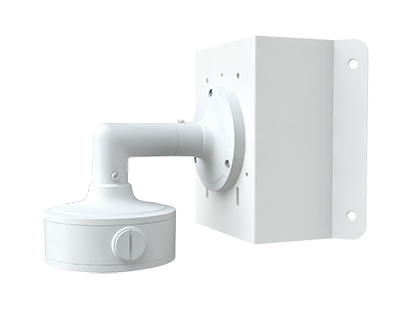

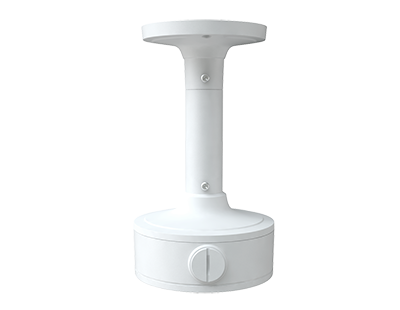

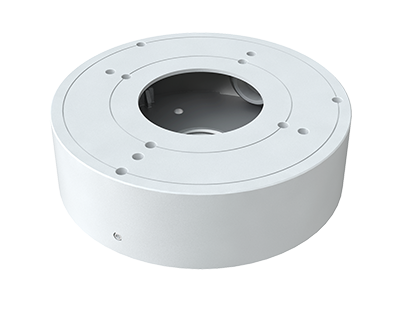

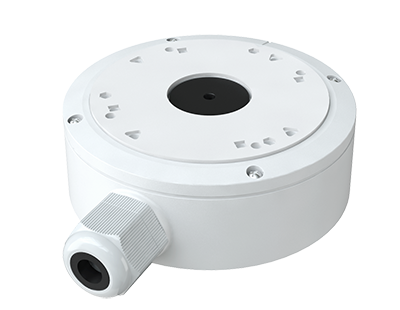

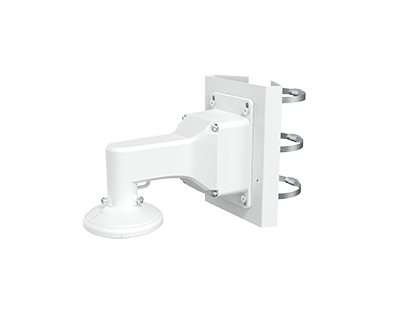

Accessories
Downloads
Features
H.265+/H.265/H.264+/H.264/MJPEG coding
Max.resolution: 8MP ( 4640 × 1760 )
ICR auto switch, t rue day / night vision
Support smart supplement light
Up to 30 m IR night view distance; up to 20m white light distance
3D DNR, WDR, HLC, BLC and ROI coding
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP66 protection grade
Support three streams
Support mobile surveillance by smart phones with iOS and Android OS
Support SMD
Support P2P function
Multiple smart events can be enabled at the same time
Blue and red light warning (flashing alternately)
Support user-defined warning voice import
Dual system backup

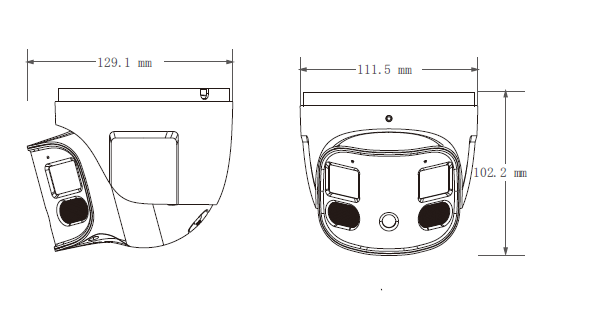

Dimension
| Model | TD-9585E3B-DP | |||
| Camera | ||||
| Image Sensor | 1 / 2.7 " Progressive Scan CMOS × 2 | |||
| Max. Resolution | 4640×1760 | |||
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0032 lux@F1.6, AGC ON; 0 lux with LED ON | |||
| Lens | 2.8mm @F1.6 | |||
| Field of View | Horizontal: 180°; Vertical:66° | |||
| Lens Mount | M12 | |||
| Day & Night | Auto | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 8MP (4640×1760), 6MP(3632×1632), 4MP(3200×1200), 2MP (2304×864), 2048×768, 1600×608, 1200×448, 960×368, 640×240 | |||
| Main Stream | 8MP/6MP/4MP/2MP(60Hz : 1~30fps; 50Hz : 1~25fps) | |||
| Sub Stream | 2048×768/1600×608/1200×448(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Third Stream | 1200×448/960×368/640×240(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Bit Rate | 64 Kbps ~10Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in speaker; 2CH built-in MICs | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 60m(196ft) | 24m(79ft) | 12m(39ft) | 6m(20ft) |
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm, light alarm | |||
| General Function | Watermark, video mask, heartbeat, smart supplement light, ANR, cloud upgrade | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and token authentication for HTTP/RTSP | |||
| PoE | Yes , IEEE802.3af | |||
| Supplement Light Range | IR Range: up to 30m; White light range: up to 20m | |||
| Ingress Protection | IP66 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | PoE: max. 10.2W; DC12V: max. 9W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | ? 111.5 × 102.2 | |||
| Weight ( net ) | Approx.0.719KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
