TD-9844E3B
4MP Dual-lens Network IR Water-Proof Camera
TD-9844E3B(D/PE/AR2) Fixed lens：2.8mm*2
TD-9844E3B(D/PE/AR2) Fixed lens：3.6mm*2
Introduction
Specification

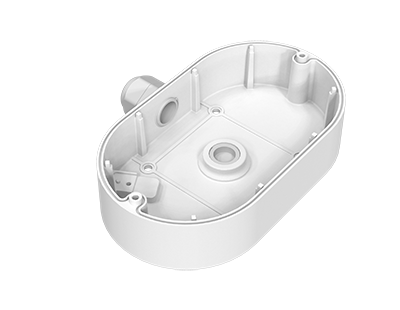

Accessories
Downloads
Features
H.265+/H.265/H.264+/H.264/MJPEG coding
Max. resolution: 2688 × 1520
ICR auto switch, true day / night vision
20 ~ 30m IR night view distance
3D DNR, WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Support 2-split screen preview
Built-in micro SD card slot, up to 512GB
DC12V/PoE power supply
IP 66 & IK 10 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Support P2P function
Multiple smart events can be enabled at the same time
Support dual-system backup

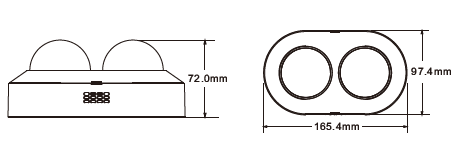

Dimension
| Model | TD-9844E3B | |||
| Camera | ||||
| Image Sensor | 1 / 3 "CMOS*2 | |||
| Image Size | 2688 × 1520 | |||
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.005 lux@F1.6,AGC ON;0 lux with IR | |||
| Lens | 2.8 mm@F1.6, Horizontal FoV: 101°; vertical FoV: 55°; diagonal FoV:122°； 3.6 mm@F1.6, Horizontal FoV: 83°; vertical FoV: 42°; diagonal FoV:100° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: -90°~90°; Tilt:0°~65°; Rotation: 0°~355° | |||
| Image | ||||
| Video Compression | Main/Third stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP (2688×1520), 2K (2560×1440), 3MP(2304×1296), 1080P ( 1920×1080), 720P (1280×720 ), D1, VGA(640×480), 640×360, CIF, 480 × 240 | |||
| Main Stream | 4MP/2K/3MP/1080P ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Sub Stream | 720P/D1/VGA/640×360/480×240/CIF( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification) loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 58m(191ft) | 23m(76ft) | 12m(38ft) | 6m(19ft) |
| 3.6mm | 79m(260ft) | 32m(104ft) | 16m(52ft) | 8m(26ft) |
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 2CH built-in MICs; 1CH built-in speaker | |||
| Storage | Built-in micro SD card slot; up to 512GB | |||
| Reset | Yes | |||
| Alarm | 2CH alarm input; 2CH alarm output | |||
| Power Output | Yes, max. DC12V@100mA | |||
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict,network disconnection, audio alarm | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, disarming, ANR, cloud upgrade | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API services | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 20~30 m | |||
| Ingress Protection | IP 66& IK10 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | <9.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 165.4 × 97.4× 72 | |||
| Weight ( net ) | Approx. 0.755KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
